B. Sample Certificates

This appendix contains text-versions of the Certificates that were used in section 4.4.5. This is intended as a detailed reference when comparing the amount of additional information (names, addresses etc) that was stored in the certificates we used. The Certificates were prepared using Open SSL [23].

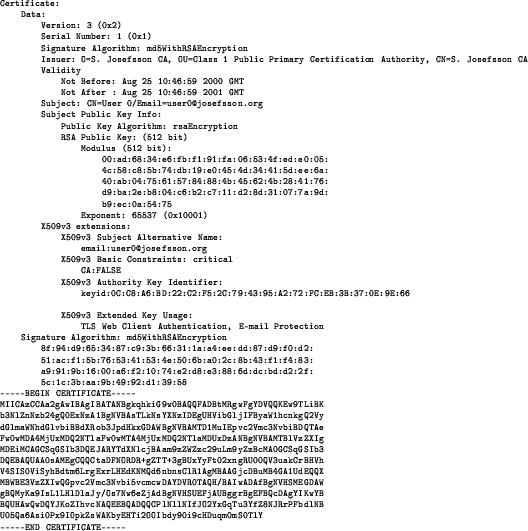

Figure B.1: 512 bit RSA certificate
\begin{figure}\begin{center} \tiny\begin{verbatim}Certificate: Data: Version... ...0i9cHDuqm0mS0TlY -----END CERTIFICATE-----\end{verbatim}\end{center}\end{figure}

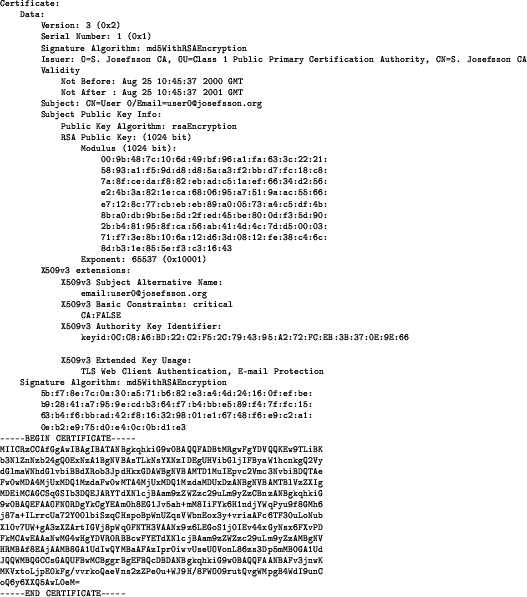

Figure B.2: 1024 bit RSA certificate
\begin{figure}\begin{center} \tiny\begin{verbatim}Certificate: Data: Version... ...oQ6y6XXQ5AwL0eM= -----END CERTIFICATE-----\end{verbatim}\end{center}\end{figure}

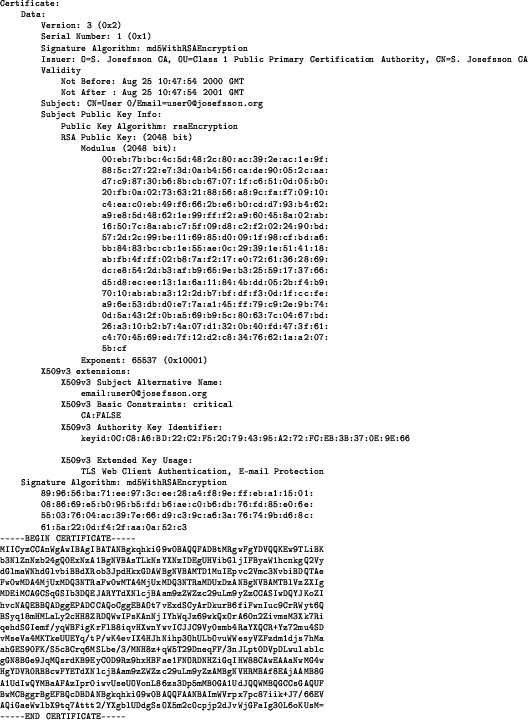

Figure B.3: 2048 bit RSA certificate
\begin{figure}\begin{center} \tiny\begin{verbatim}Certificate: Data: Version... ...jGFaIg30L6oKUsM= -----END CERTIFICATE-----\end{verbatim}\end{center}\end{figure}

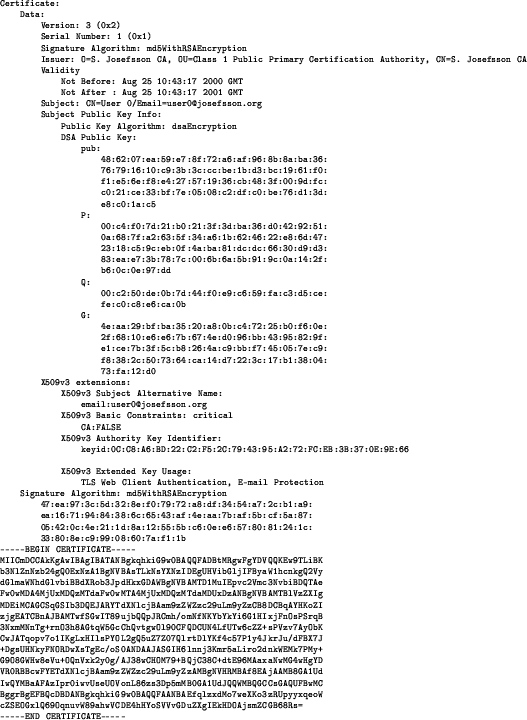

Figure B.4: 512 bit DSA certificate
\begin{figure}\begin{center} \tiny\begin{verbatim}Certificate: Data: Version... ...HDOAjsmZCGB68Rs= -----END CERTIFICATE-----\end{verbatim}\end{center}\end{figure}

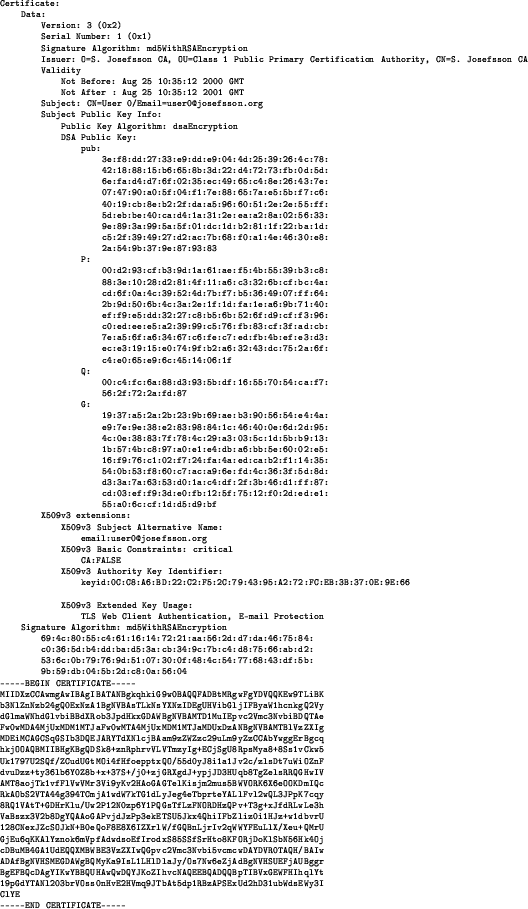

Figure B.5: 1024 bit DSA certificate
\begin{figure}\begin{center} \tiny\begin{verbatim}Certificate: Data: Version... ...1ubWdsEWy3I ClYE -----END CERTIFICATE-----\end{verbatim}\end{center}\end{figure}

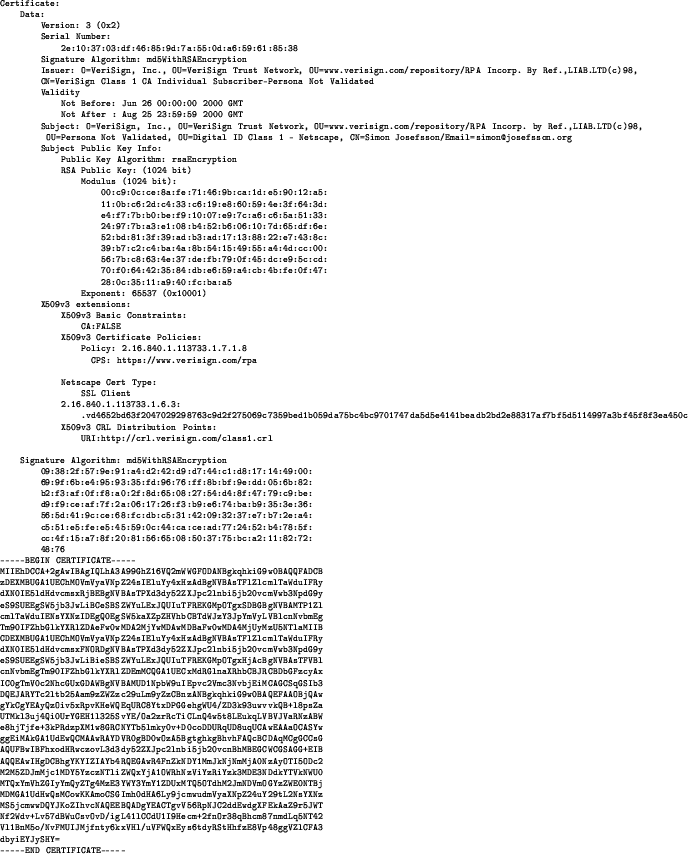

Figure B.6: VeriSign 1024 bit RSA certificate
\begin{figure}\begin{center} \tiny\begin{verbatim}Certificate: Data: Version... ...FA3 dbyiEYJySHY= -----END CERTIFICATE-----\end{verbatim}\end{center}\end{figure}
